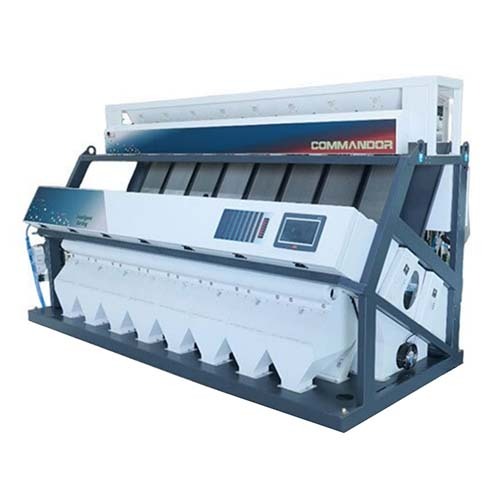

Commandor Color Sorter - 8 chute

HIGH SPEED HD CAMERA

• Ultra HD imaging and analysis technology, high-speed processing, accurate identification, intelligent image processing

• AI-machine learning technology

• Intelligent sorting technology

• Intelligent study data classification

• 5400x3 pixel RGB sensor

• Image can be taken upto 122 million pixels per second

• High level AI-machine learning technology, user friendly interface, easy operation

• Multi-function, Multi-purpose, Widely used for all sorting purposes of Rice, Wheat, Dal, Pulses, Grains, Seeds, Plastics, Quartz & etc.

• High end specifications ensure high stability with high sorting accuracy

• Combined with color sorting, AI sorting-sort difficult impurities like micro color differences in the Product

• FPGAs Based best-in-class signal processing capabilities for high bandwidth applications built on the 28nm HPL processor

• HD lense for clear imaging

HMI

• MARK brand full HD colorful 10.1 touch screen

• Easy to use interface

• Customer friendly user interface

• Linux based operating systems

• Powerful communication system

FEEDER

• Closed loop sensor based feeder systems self calibration

• Material, even feeding system

Specifications of Commandor:-

Chute Option Available

1 Chute 32 Channels

1 Chute 63 Channels

1 Chute

2 Chute

3 Chute

4 Chute

5 Chute

6 Chute

7 Chute

8 Chute

10 Chute

12 Chute

Chute Distribution (P+S+F)

1

1

1

1+1

2+1

2+1+1

3+1+1

4+1+1

4+2+1

5+2+1

6+2+2 or 6+2+1+1

7+3+2 or 7+2+2+1

Output (TPH) for Rice/Dal

0.500 to 1.0

0.75 to 1.5

0.75 to 1.5

1 to 2

1.5 to 2.5

2 to 4

3 to 5

3.5 to 5.5

4 to 6

5 to 7

6 to 8

7 to 9

No. of Camera (F&R)

1+1

1+1

1+1

2+2

3+3

4+4

5+5

6+6

7+7

8+8

10+10

12+12

Air Requirement @7.5cm²

15 CFM

28 CFM

28 CFM

38 CFM

54 CFM

72 CFM

96 CFM

113 CFM

132 CFM

150 CFM

180 CFM

230 CFM

Compressor Requirement

5 HP Screw

7.5 HP Screw

7.5 HP Screw

10 HP Screw

15 HP Screw

20 HP Screw

25 HP Screw

25 HP Screw

30 HP Screw

30 to 40 HP Screw

40 HP Screw

50 HP Screw

Dimension (LxWxH) Ft

1.94 x 4.16 x 4.76

3 x 4.65 x 4.81

3.63 x 4.88 x 5.97

4.1 x 4.88 x 5.97

5.19 x 4.88 x 5.97

6.33 x 4.88 x 5.97

7.46 x 4.88 x 5.97

8.59 x 4.88 x 5.97

9.73 x 4.88 x 5.97

10.87 x 4.88 x 5.97

13.83 x 4.88 x 5.97

16 x 4.88 x 5.97

Cabin Dimension (LxWxH) Ft

Movable type with wheel

Movable type with wheel

7x10x8

8x10x8

9x10x8

10x10x8

12x10x8

13x10x8

14x10x8

16x10x8

18x10x8

20x10x8

 Technical Details

Superior Sorting Performance

The Commandor Color Sorter employs high-resolution full-color CCD cameras combined with a double-layer ejector to accurately identify and remove defective items from your product stream. With a sorting accuracy of 99%, it ensures only premium material passes through, minimizing waste and maximizing profit in every batch.


Built for Heavy Duty Operations

Constructed with durable stainless steel and designed to handle up to 7-8 tons per hour, this machine is suited for high-capacity industrial environments. Its 448 channels and 8-chute architecture allow efficient sorting for a wide variety of granular materials, from agricultural produce to plastics.


User-Friendly Interface and Connectivity

Operating the Commandor Color Sorter is effortless, thanks to its large 10-inch touchscreen and remote online support. The touch interface allows for real-time adjustments, while connectivity options ensure seamless support and troubleshooting from experts, enhancing operational uptime.
