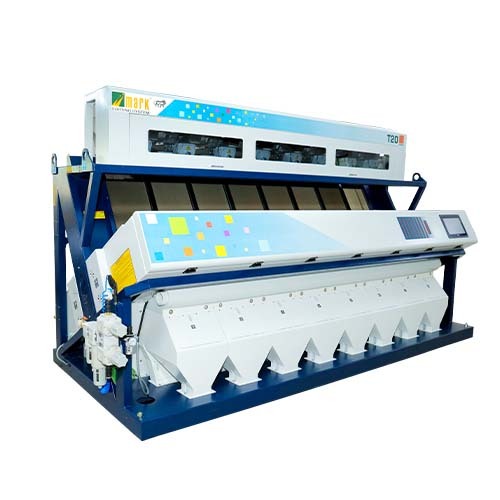

T20 Square Color Sorter 8 Chute

Product Features

RGB Tri-chromatic Color Camera:
High speed HD camera Resolution:5400*3 lines pixels with trichromatic (rgb) color spectrums Both front and back view cameras are digitally aligned with digital alignment technology.
Image Acquisition System:
The color sorter machine features a High-Precision Image Acquisition System that captures detailed images at high speed using advanced cameras.lt ensures accurate detection of even the finest color differences and defects. This system enhances sorting precision and improves overall product quality.
Wi-Fi Control System:
This machine comes equipped with a Wi-Fi System for seamless remote monitoring and control. Users can access real-time performance data, receive alerts, and update settings from anywhere. This smart connectivity enhances convenience, reduces service time, and boosts productivity.
Vibrator Tray:
Compared to the T20 model, the T20 Square machine features an upgraded vibrator system with enhanced speed and efficiency, the integration of advanced sensors that ensure precise material flow and consistent feed rate for optimal sorting performance.
Automatic Intelligent Dust Removal:
Our color sorter machine features an Intelligent Dust Removal System that ensures consistent sorting accuracy by keeping the camera and sensors clean.It automatically detects and removes dust, reducing manual maintenance and downtime. This smart system enhances performance, extends machine life, and maintains top efficiency.
Image Dimming System:
It is equipped with an Automatic Dimming System that adjusts lighting intensity based on material flow and type.This ensures optimal image clarity under varying conditions for accurate sorting. The system improves performance, reduces energy consumption, and extends LED life.
10' Inch Color HMI:
Mini computer based touch screen Uncountable storage capacity for saving different program modes User interfaced touchscreen with live communication technology
User Defined Background With Color Led:
Low energy consumption led lighting Improves fine RGB illumination in background Enhancing defects recognition systems by varying different backgrounds for Different types of grains

Specifications of T20 Squares

Chute Option Available	1 Chute	2 Chute	3 Chute	4 Chute	5 Chute	6 Chute	7 Chute	8 Chute	10 Chute	12 Chute
Chute Distribution (P+S+F)	1	1+1 (or) 1+(40+21)	2+1 (or) 2+(40+21)	2+1+1 (or) 2+1+(40+21)	3+1+1 (or) 3+1+(40+21)	4+1+1 (or) 4+1+(40+21)	4+2+1 (or) 4+1+2 (40+21)	5+2+1 (or) 5+1+1+1	6+2+2 (or) 6+2+1+1	7+3+2 (or) 7+2+2+1
Output (TPH) for Rice/Dal	0.5 to 1.5	1 to 2	1.5 to 2.5	2 to 4	3 to 5	3.5 to 5.5	4 to 6	5 to 7	6 to 8	7 to 9
No. of Cameras (F & R)	1+1	2+2	3+3	4+4	5+5	6+6	7+7	8+8	10+10	12+12
Air Requirement @7.5 cm²	28 CFM	38 CFM	54 CFM	72 CFM	96 CFM	113 CFM	132 CFM	150 CFM	180 CFM	230 CFM
Compressor Requirement	7.5 HP Screw	10 HP Screw	15 HP Screw	20 HP Screw	25 HP Screw	25 HP Screw	30 HP Screw	30 to 40 HP Screw	40 HP Screw	50 HP Screw
Dimension (LxWxH) ft	2.92x4.88x5.97	4.14x4.88x5.97	5.19x4.88x5.97	6.33x4.88x5.97	7.46x4.88x5.97	8.59x4.88x5.97	9.73x4.88x5.97	10.87x4.88x5.97	13.83x4.88x5.97	16x4.88x5.97
Cabin Dimension (LxWxH) ft	7x10x8	8x10x8	9x10x8	10x10x8	12x10x8	13x10x8	14x10x8	16x10x8	18x10x8	20x10x8

Technical Details

Advanced Double-Side Sorting Technology

The T20 Square Color Sorter utilizes double-side sorting with high-resolution 5400-pixel CCD cameras, guaranteeing superior sorting precision. Its intelligent background adjustment adapts to various grains, plastics, and industrial materials, ensuring consistent results and minimization of impurities.

User-Friendly and Durable Design

Constructed from stainless steel and industrial engineering plastics, this sorter is built for longevity. The intuitive touch screen interface supports multiple languages, and high-speed ejector valves offer over 10 billion cycles of operational durability, making it an industry leader in reliability.

Exceptional Performance and Versatility

Operating at 220V/50Hz (3-phase), the T20 delivers a high sorting capacity of 5-7 tons per hour with a rejection rate of just 0.2%. It can detect defects as small as 0.02 mm, making it suitable for sensitive applications in food and industrial processing.

FAQ's of T20 Square Color Sorter 8 Chute:

Q: How does the T20 Square Color Sorter achieve high sorting accuracy?

A: The T20 uses full-color 5400-pixel CCD cameras and advanced double-side sorting to detect and separate materials with exceptional accuracy, identifying defects as small as 0.02 mm. Its intelligent background adjustment and high-speed ejector valves ensure precise sorting results.

Q: What materials and applications can this sorter handle?

A: The sorter is versatile, suitable for sorting and grading rice, grains, beans, seeds, nuts, plastic granules, and various industrial materials. Its design makes it ideal for exporters, manufacturers, and suppliers across food and industrial sectors.

Q: When is after-sales support available for this machine?

A: After-sales support is available both online and onsite. Customers can access technical guidance, troubleshooting, and maintenance services throughout the machine's operational life to ensure consistent performance.

Q: Where should the T20 Square Color Sorter be installed for optimal operation?

A: The analyzer should be installed in a clean, vibration-free industrial environment, with access to a 220V/50Hz 3-phase power supply, proper air compressor support (7.5 kW, 0.6-0.8 MPa), and within the operating temperature range of -20C to 50C.

Q: What is the process for sorting materials with this machine?

A: Materials are loaded into the sorter, and as they flow through the 8 chutes and 512 individual channels, the cameras scan each piece. The system uses intelligent algorithms to sort based on color and defects, ejecting unsuitable items with high-speed, durable valves.

Q: How does using the T20 Square Color Sorter benefit production?

A: This sorter maximizes productivity with high output (5-7 T/h), outstanding sorting accuracy (99.8%), and low rejection rates. Its robust build and automated controls reduce manual labor, improve product quality, and optimize yields for various materials.
