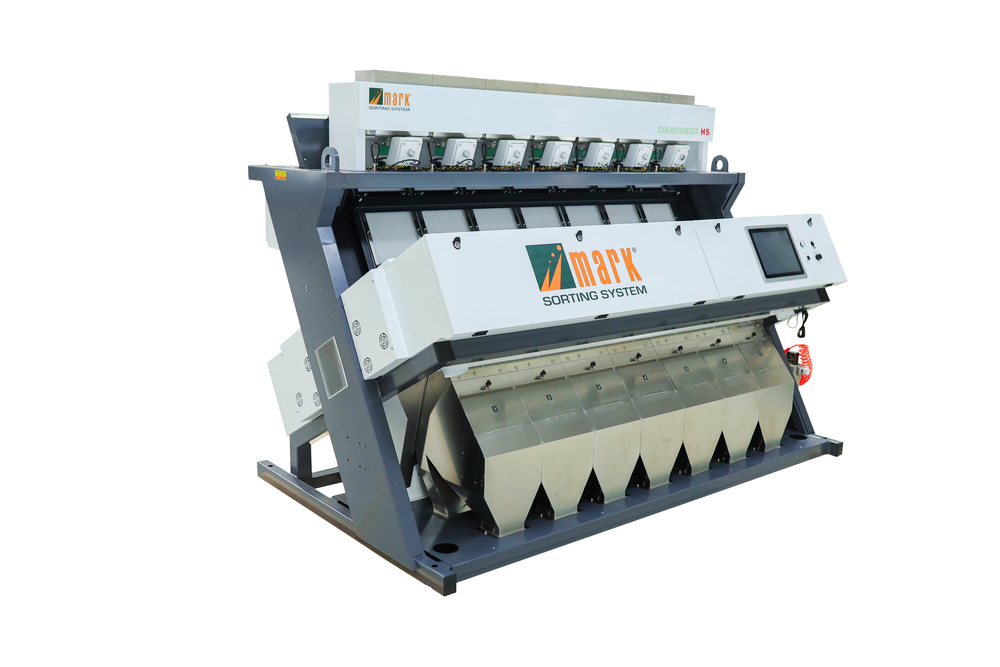

Toor Dal Color Sorter

HIGH SPEED HD CAMERA

• Ultra HD imaging and analysis technology, high-speed processing, accurate identification, intelligent image processing

• AI-machine learning technology

• Intelligent sorting technology

• Intelligent study data classification

• 5400x3 pixel RGB sensor

• Image can be taken upto 122 million pixels per second

• High level AI-machine learning technology, user friendly interface, easy operation

• Multi-function, Multi-purpose, Widely used for all sorting purposes of Rice, Wheat, Dal, Pulses, Grains, Seeds, Plastics, Quartz & etc.

• High end specifications ensure high stability with high sorting accuracy

• Combined with color sorting, AI sorting-sort difficult impurities like micro color differences in the Product

• FPGAs Based best-in-class signal processing capabilities for high bandwidth applications built on the 28nm HPL processor

• HD lense for clear imaging

HMI

• MARK brand full HD colorful 10.1 touch screen

• Easy to use interface

• Customer friendly user interface

• Linux based operating systems

• Powerful communication system

FEEDER

• Closed loop sensor based feeder systems self calibration

• Material, even feeding system

Specifications of Commandor:-

Chute Option Available

1 Chute 32 Channels

1 Chute 63 Channels

1 Chute

2 Chute

3 Chute

4 Chute

5 Chute

6 Chute

7 Chute

8 Chute

10 Chute

12 Chute

Chute Distribution (P+S+F)

1

1

1

1+1

2+1

2+1+1

3+1+1

4+1+1

4+2+1

5+2+1

6+2+2 or 6+2+1+1

7+3+2 or 7+2+2+1

Output (TPH) for Rice/Dal

0.500 to 1.0

0.75 to 1.5

0.75 to 1.5

1 to 2

1.5 to 2.5

2 to 4

3 to 5

3.5 to 5.5

4 to 6

5 to 7

6 to 8

7 to 9

No. of Camera (F&R)

1+1

1+1

1+1

2+2

3+3

4+4

5+5

6+6

7+7

8+8

10+10

12+12

Air Requirement @7.5cm²

15 CFM

28 CFM

28 CFM

38 CFM

54 CFM

72 CFM

96 CFM

113 CFM

132 CFM

150 CFM

180 CFM

230 CFM

Compressor Requirement

5 HP Screw

7.5 HP Screw

7.5 HP Screw

10 HP Screw

15 HP Screw

20 HP Screw

25 HP Screw

25 HP Screw

30 HP Screw

30 to 40 HP Screw

40 HP Screw

50 HP Screw

Dimension (LxWxH) Ft

1.94 x 4.16 x 4.76

3 x 4.65 x 4.81

3.63 x 4.88 x 5.97

4.1 x 4.88 x 5.97

5.19 x 4.88 x 5.97

6.33 x 4.88 x 5.97

7.46 x 4.88 x 5.97

8.59 x 4.88 x 5.97

9.73 x 4.88 x 5.97

10.87 x 4.88 x 5.97

13.83 x 4.88 x 5.97

16 x 4.88 x 5.97

Cabin Dimension (LxWxH) Ft

Movable type with wheel

Movable type with wheel

7x10x8

8x10x8

9x10x8

10x10x8

12x10x8

13x10x8

14x10x8

16x10x8

18x10x8

20x10x8

 Technical Details

Advanced Double Layer CCD Sensor Technology

Harnessing the power of a double layer, 5400-pixel CCD sensor system, this Toor Dal Color Sorter delivers supreme detection capabilities. The RGB full color electronics, coupled with LED cold lighting, precisely distinguish color defects and foreign particles to ensure high-grade output.


User-Friendly and Robust Design

Designed for seamless operation, the sorter includes a 12-inch touch screen interface for convenient monitoring and setting adjustments. Its stainless steel construction promises durability, while large-capacity reject chutes and high-speed ejectors facilitate continuous, high-volume sorting.


Optimal Efficiency for Food Processing Industries

With a sorting speed of 13 tons per hour and 99% accuracy, this machine boosts productivity in dal mills and food processing facilities. Operating within -20C to 45C, it provides reliable performance even in varied environments.
