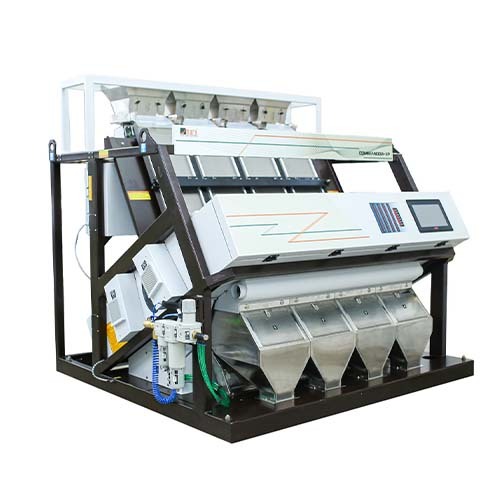

Commandor XP 4 Chute Color sorter
"Ultimate Solution for All Plastic Material Sorting!"
Mark's COMMANDOR-XP Plastic Color Sorter Machine, elevate your plastic material sorting capabilities to new heights. Maximize productivity, minimize waste, and achieve unparalleled quality control with our innovative solution. Invest in excellence - choose COMMANDOR-XP today!
FEATURES:
- High-Speed HD camera.
- Intelligent image processing.
- AI-Deep learning technology.
- Intelligent study data classification.
- 5400 x 3-pixel Trichromatic RGB scanner.
- Image can take 122 million pixels/sec
- Excellent Solution for multi-product sorting
- Even light systems, have a 1.2 Billion life cycle.
- HD lens for clear image
HMI
- Mark brand full HD Colorful 10.1 touchscreen
- +1000 Different types of programs can be set up.
- Easy-to-use & Customer-friendly user-interface
- Linux-based operation system
- Powerful communication system
FEEDER
- Closed loop sensor-based feeder systems self-calibration
- Material even feeding system
LED
- Microcontroller LED, High Reliability, and long lifespan
- LED Lights resource smart cooling
- 16 million colors RGB Background LED
- Real-time background color adjustable
- Even light systems
- Accurate dimming control
VALVE
- High-speed valve
- 1/2 Billion life cycle
Chute Option Available 1 Chute 2 Chute 3 Chute 4 Chute 5 Chute 6 Chute 7 Chute 8 Chute 10 Chute 12 Chute Chute Distribution (P+S+F) 1 1+1 2+1 3+1 3+1+1 4+2 4+2+1 5+2+1 6+2+2 (or) 6+2+1+1 8+2+2 Output (Plastic) 150 to 300kg per primary chute 150 to 300kg per primary chute 150 to 300kg per primary chute 150 to 300kg per primary chute 150 to 300kg per primary chute 150 to 300kg per primary chute 150 to 300kg per primary chute 150 to 300kg per primary chute 150 to 300kg per primary chute 150 to 300kg per primary chute No. of Camera (F+R) 1 + 1 2 + 2 3 + 3 4+4 5 + 5 6+6 7 + 7 8+8 10 + 10 12+12 Air Requirement @7.5cm² 28 CFM 38 CFM 54 CFM 72 CFM 96 CFM 113 CFM 132 CFM 150 CFM 180 CFM 230 CFM Compressor Requirement 7.5 HP Screw 10 HP Screw 15 HP Screw 20 HP 25 HP Screw 25 HP 30 HP Screw 30 to 40 HP 40 HP Screw 50 HP Dimension (LxWxH) Feet 2.92x6.6x6.2 4.1x6.6x6.2 5.19x6.6x6.2 6.28X6X6.2 7.46x6.6x6.2 8.56X6X6.2 9.73x6.6x6.2 10.83X6X6.2 13.83x6.6x6.2 16.03x6x6.2 Cabin Dimension (LxWxH) Feet 7 x 10 x 8 8 x 10 x 8 9 x 10 x 8 10x10x8 12 x 10 x 8 12x10x8 14 x 10 x 8 15x10x8 18 x 10 x 8 20x10x8
| Chute Option Available | 1 Chute | 2 Chute | 3 Chute | 4 Chute | 5 Chute | 6 Chute | 7 Chute | 8 Chute | 10 Chute | 12 Chute |
| Chute Distribution (P+S+F) | 1 | 1+1 | 2+1 | 3+1 | 3+1+1 | 4+2 | 4+2+1 | 5+2+1 | 6+2+2 (or) 6+2+1+1 | 8+2+2 |
| Output (Plastic) | 150 to 300kg per primary chute | 150 to 300kg per primary chute | 150 to 300kg per primary chute | 150 to 300kg per primary chute | 150 to 300kg per primary chute | 150 to 300kg per primary chute | 150 to 300kg per primary chute | 150 to 300kg per primary chute | 150 to 300kg per primary chute | 150 to 300kg per primary chute |
| No. of Camera (F+R) | 1 + 1 | 2 + 2 | 3 + 3 | 4+4 | 5 + 5 | 6+6 | 7 + 7 | 8+8 | 10 + 10 | 12+12 |
| Air Requirement @7.5cm² | 28 CFM | 38 CFM | 54 CFM | 72 CFM | 96 CFM | 113 CFM | 132 CFM | 150 CFM | 180 CFM | 230 CFM |
| Compressor Requirement | 7.5 HP Screw | 10 HP Screw | 15 HP Screw | 20 HP | 25 HP Screw | 25 HP | 30 HP Screw | 30 to 40 HP | 40 HP Screw | 50 HP |
| Dimension (LxWxH) Feet | 2.92x6.6x6.2 | 4.1x6.6x6.2 | 5.19x6.6x6.2 | 6.28X6X6.2 | 7.46x6.6x6.2 | 8.56X6X6.2 | 9.73x6.6x6.2 | 10.83X6X6.2 | 13.83x6.6x6.2 | 16.03x6x6.2 |
| Cabin Dimension (LxWxH) Feet | 7 x 10 x 8 | 8 x 10 x 8 | 9 x 10 x 8 | 10x10x8 | 12 x 10 x 8 | 12x10x8 | 14 x 10 x 8 | 15x10x8 | 18 x 10 x 8 | 20x10x8 |
Technical Details
Cutting-Edge Sorting Precision
Utilizing high-resolution full-color CCD sensors and solid-state LED lighting, the Commandor XP 4 Chute Color Sorter ensures unparalleled identification of color variations for the finest separation accuracy. With a 99.99% accuracy rate and less than 0.01% error, it guarantees dependable performance even for materials with subtle color differences.
Versatile Applications and Throughput
This sorter accommodates varied product streams including rice, wheat, dal, seeds, nuts, plastics, and minerals, operating at a high capacity of 4-5 tons per hour (material dependent). Its configurable sorting modes and four channels enable seamless adaptation to diverse sorting requirements in both agricultural and industrial environments.
User-Friendly Operation and Maintenance
The 10.4-inch color touchscreen interface simplifies machine operation and monitoring, allowing easy adjustment of parameters and sorting modes. Designed for low-noise operation below 70 dB, the Commandor XP ensures a pleasant working environment, while robust build quality ensures longevity and dependable results.
FAQ's of Commandor XP 4 Chute Color sorter:
Q: How does the Commandor XP 4 Chute Color Sorter improve sorting efficiency?
A: The Commandor XP utilizes advanced full-color CCD cameras and double-layer high-speed ejectors, enabling accurate selection and removal of unwanted items at a rapid pace. This maximizes processing speed and delivers consistent, high-quality output with 99.99% accuracy.Q: What materials can be sorted with this machine?
A: This color sorter is designed for versatility, capable of sorting rice, wheat, dal, seeds, nuts, various grains, plastics, minerals, and more, making it ideal for both agricultural and industrial sorting processes.Q: When is it recommended to use the Commandor XP in your operation?
A: The Commandor XP is ideal for use whenever precise, high-throughput sorting is needed, especially when handling large volumes or when working with mixed-material input where color-based sorting is crucial.Q: Where can the Commandor XP 4 Chute Color Sorter be installed?
A: It is suitable for installation in large-scale agricultural processing plants, industrial sorting facilities, and export packaging units. The machine's design supports a range of environments in India and globally, provided there is a 220V, 50Hz single phase power supply.Q: What is the sorting process with this machine?
A: Materials are fed into the sorter, where high-resolution cameras and LED lighting detect color differences. The system identifies and ejects unwanted or defective items using double-layer high-speed ejectors, producing clean, accurately sorted output.Q: How is the machine operated and controlled?
A: Operation is streamlined through a 10.4-inch color touchscreen interface, which allows operators to easily configure sorting parameters and switch between different material presets for optimized performance.Q: What benefits does the Commandor XP offer over conventional sorting methods?
A: It significantly reduces labor costs, decreases wastage, and boosts productivity by delivering rapid, consistent, and highly accurate results, even with complex or high-volume material streams, all while maintaining low noise and energy consumption.Enquiry
